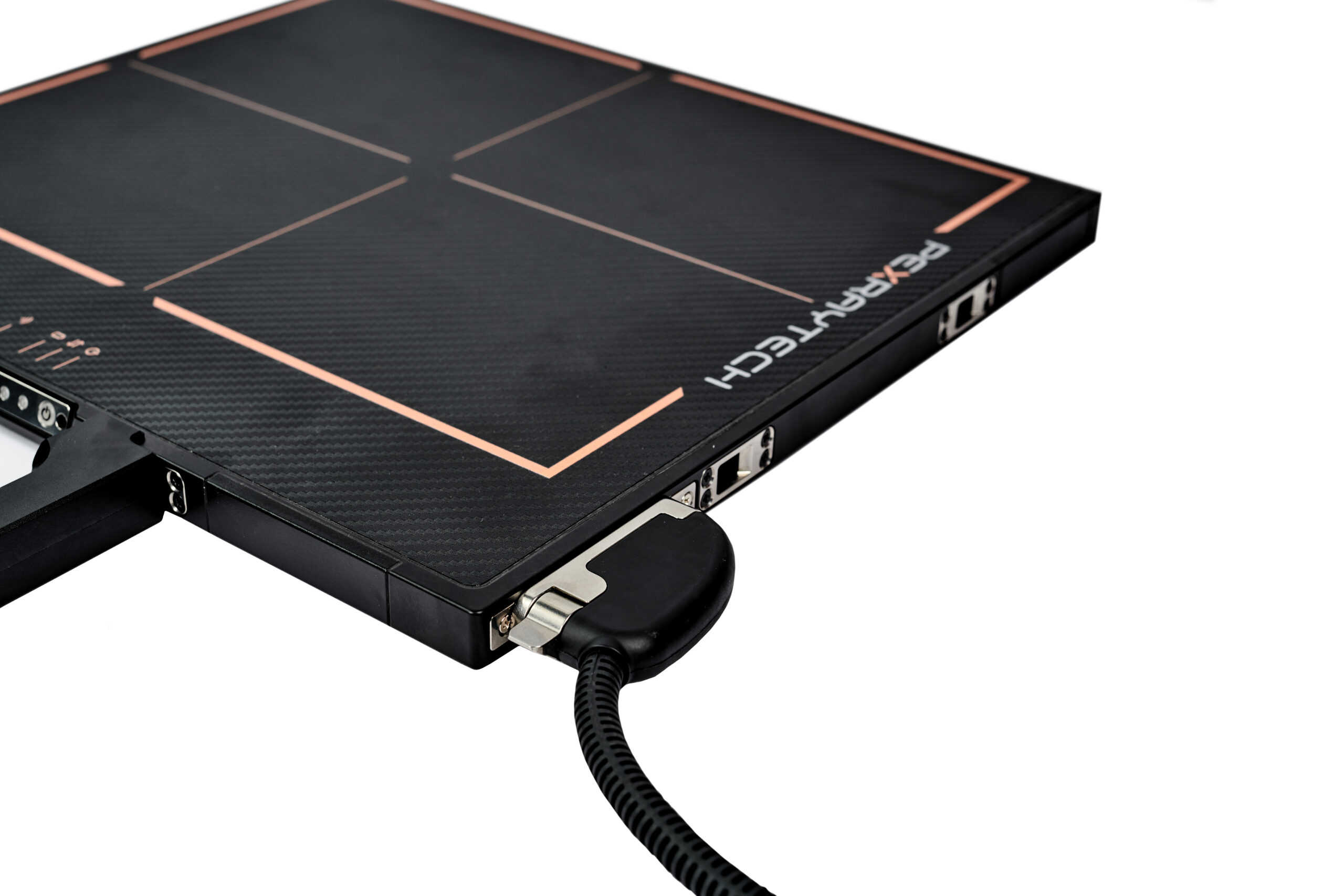

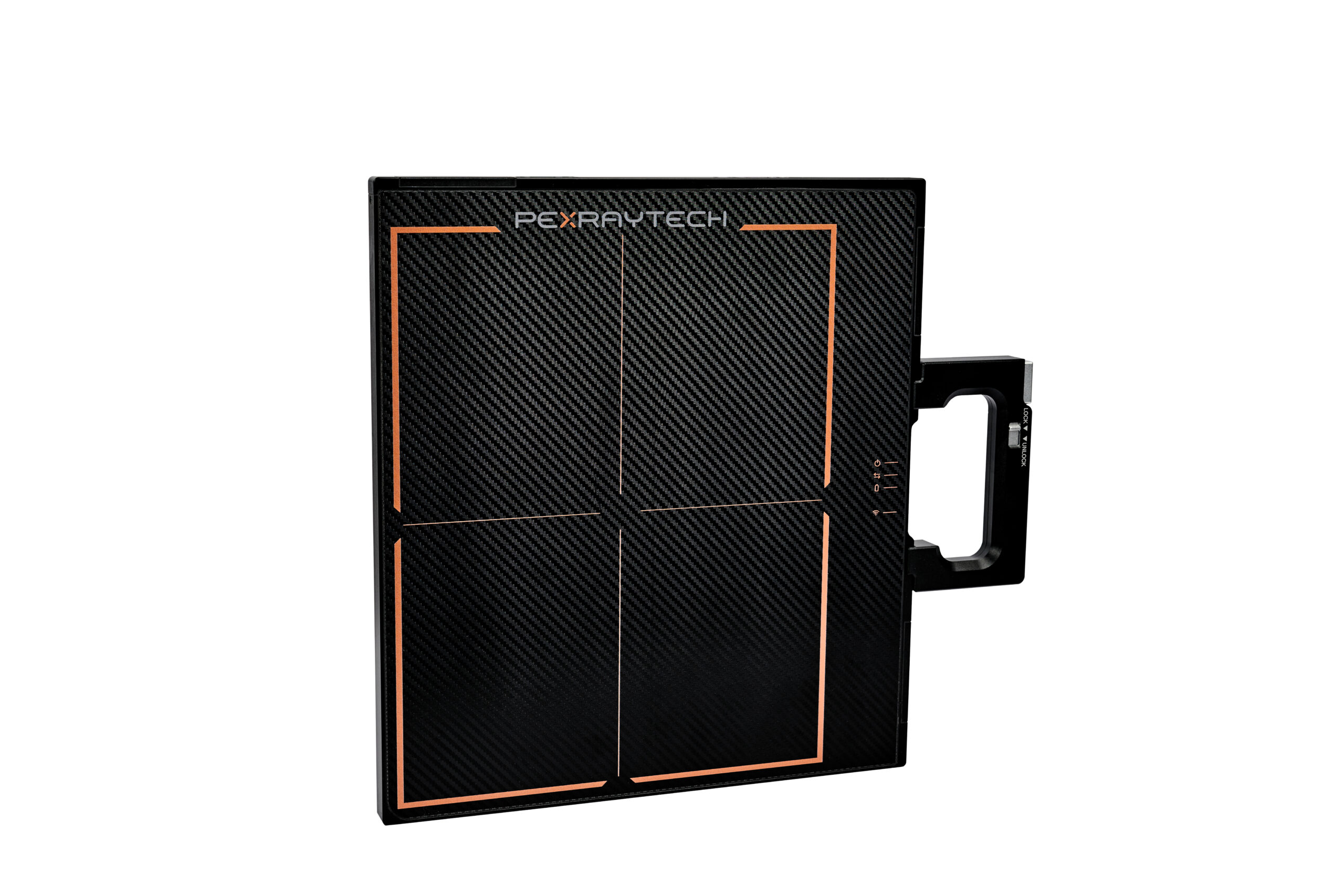

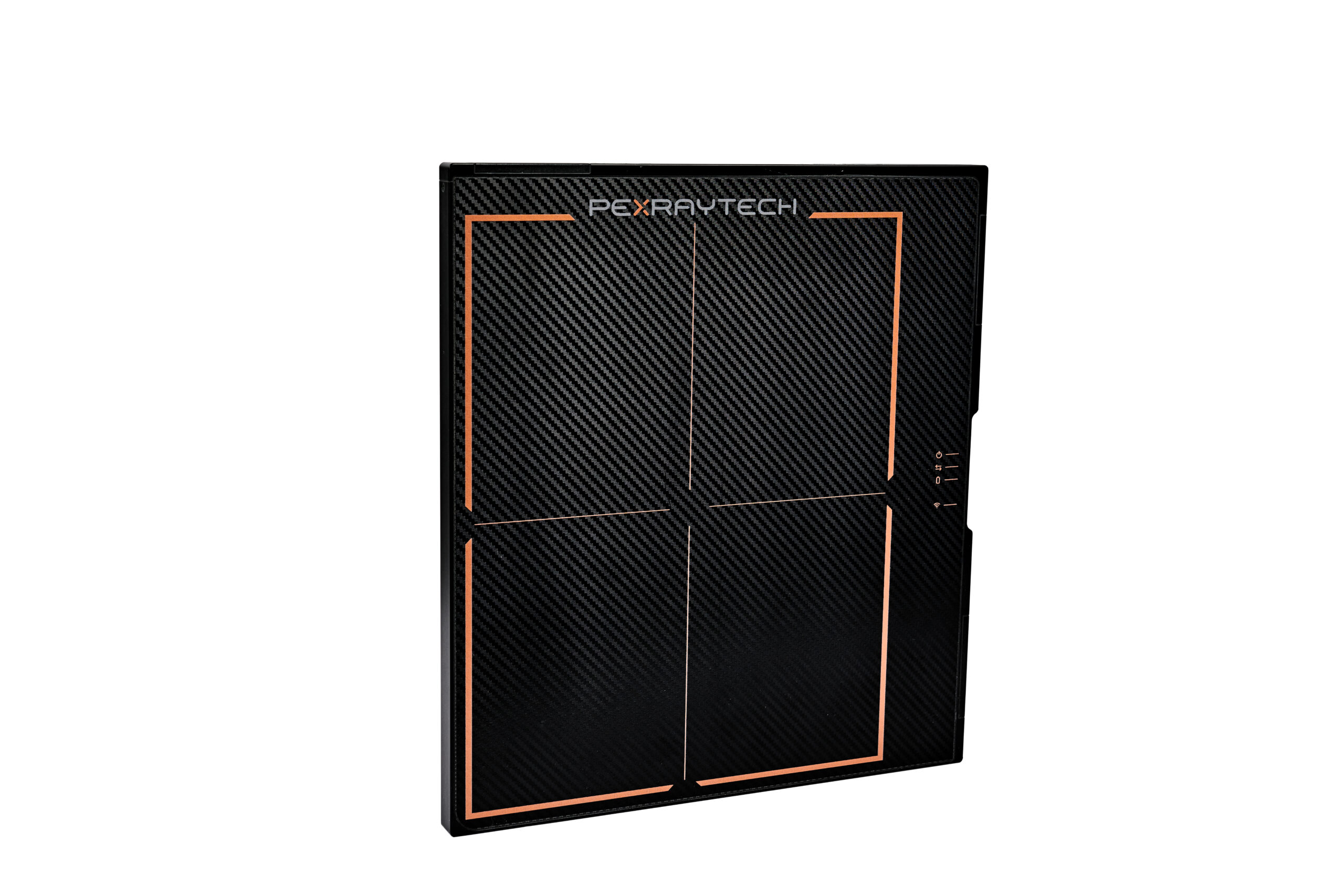

Panel PXR Alpha 25
Aktiver Bildbereich: 253,95 mm x 317,44 mm
Unbedeckte aktive Fläche: 8,5 mm (unten & rechts)
Pixelgröße: 124 μm
| Typ sensora | A-SI TFT Panel |
|---|---|
| Pixel size | 124 μm, resolution: 4.03 LP/mm @ Magnification of 1 |
| Pixel Matrix | 2048 x 2560 pixels |
| Weld Seam Inspection | ISO17636-2 2013: CLASS A: all inspections with compensation, CLASS B: material thickness down to 1.5 –4.0 mm with compensation |
| Dynamic range | 16 bit (65.536 grey levels) |
| Active area [W ×H] | 253.95 mm ×317.44 mm |
| External dimensions [W ×H ×D] | 322 mm ×355 mm ×17 mm |
| Uncovered active area | 8.5 mm at the bottom and 8.5 mm at the right side |
| Waage | 3.4 kg (Including battery) |
| Battery Life | Up to 8 hours, hot-swappable without turning off the detector |
